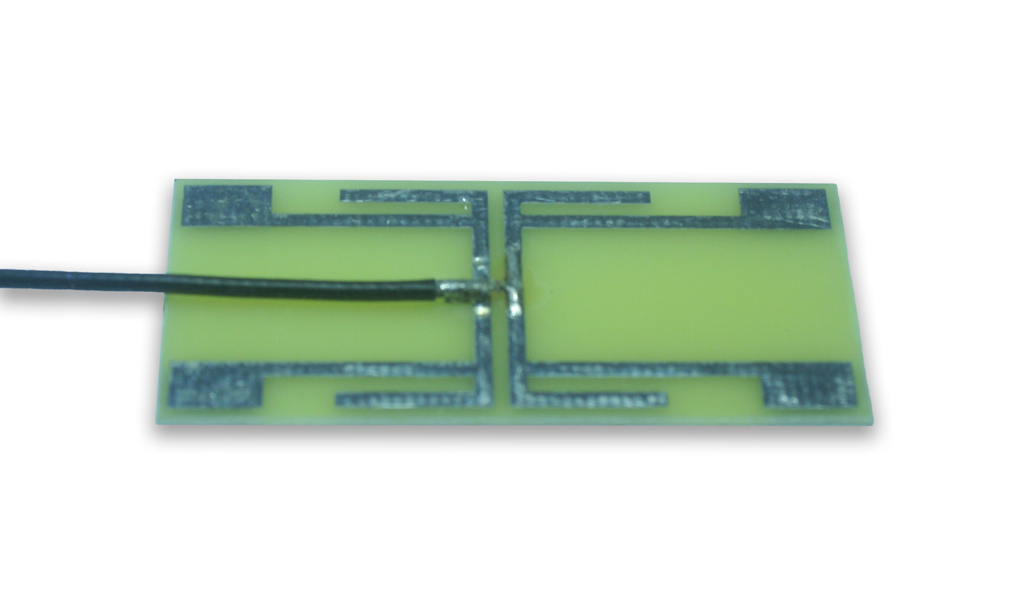

WAP Series Antennas
100% Original
30 Days Return
Free Delivery
MPN# :
WAPH-2DBI-10S-B| COMMERCIAL | |
|---|---|
| Brand | OXFORDTEC |
| ANTENNA | |
| Connector Gender | Male or Female |
| Gain (dBi) | 2.5 or 3.5 |
| Packaging Method | Retail or Bulk |
| Antenna Type | Internal |
| Antenna Form | PCB Antenna |
| Wireless Application | Wi-Fi |
| Pattern Type | Omni-Directional |
| Internal Construction | Dipole |
| Number of Leads | 1 |
| ELECTRICAL | |
| Connector | MHF1 or MHF4 |
| Adhesive Sticker | Seperate or Pre-Assembled on Antenna |
| Band | Single Band (2.4 GHz) or Dual Band (2.4 and 5 GHz) or Tri-Band: 2.4/5.8/6GHz |
| MECHANICAL | |
| length | 100.0 or 150.0 or 170.0 or 260.0 or 380.0 or 1.0 or 65.0 |
| width | 1.0 |
| SAFETY & REGULATORY | |
| EU RoHS Compliance (x) | RoHS3 Compliant |
| IP Rating | IPx0 |
| Flammability Grade | ULV0 |
| Uncategorized | |
| length | 1.0 or 100.0 or 260.0 or 170.0 |
| Cable Type | 1.13 or 0.81 or 1.37 |
| Cable Protection | No protection or Cable Shield or Shrink Tube |
| Cable Protection Shrink Tube Colour | No Protection or Black |
| Connector A Protection Type | Shrink Tube or No Protection |
| Connector A Shrink Tube Colour | Black or Yellow or Red or Blue or No Protection |
| Connector B Protection Type | Shrink Tube or No Protection |
| Connector B Shrink Tube Colour | Black or Yellow or Red or Blue or No Protection |
| Label at the Connector's A Side | No label or White or Shrink Tube Black or Shrink Tube Brown or Shrink Tube Red |
| Label at the center of the cable | No label or White or Shrink Tube Black or Shrink Tube Brown or Shrink Tube Red |
| Label at the Connector's B Side | No label or White or Shrink Tube Black or Shrink Tube Brown or Shrink Tube Red |
| width | 1.0 |
| Cable Impedance (Ohms) | 50 |
| Cable Colour | Black |
| Connector B | Antenna |
